Laser Diode Drivers and Accessories

Laser Diode dirver

Laser Diode Driver



Laser Diode Driver

Features

  • Turnkey and stand-alone operation
  • CW or Pulse operation functions
  • RS-232 interface
  • Microprocessor controlled
  • External TTL laser enable
  • Remote control and interlock safety features
  • Input voltage 110-220VAC, 50-60Hz
  • Suitable for driving up to 1-20 high power laser diodes
  • Units with higher compliance voltage available

    • Specifications(Typical Products)


    Products Name Specification
    Input Voltage 110/220 VAC, 50-60 Hz
    Power Stability +/-5%
    Compliance Voltage Model D560(5V), D1060 (10V), D1260 (12V), D3660 (36V)
    Power Consumption D560 400W; D1060 800W
    Output Current Range Up to 100 A
    Resolution 100 mA
    Accuracy +/-100mA
    Noise/Ripple 10 mA
    Transfer Function 10A/V,Slew Rate 3A/µs
    External Input less than 6.5V
    Pulse Width 30ms-CW
    Pulse Width 30ms-CW
    Pulse Frequency Up to 1KHz
    Ambient Temperature 0-40 Celsius
    Storage Temperature From -10 to 60 Celsius
    Humidity 5-95% non-condensing

    We also offer other models not listed above. For more information, please contact us with a model number of your choice.

    Model Number Breakdown (D-YZ): D: Model type:D=Laser Diode Driver; Y:Output Compliance Voltage (V); Z: Current (A). Example: Model Number (D-560)--D: Model Type-Laser Diode Driver; 5: Output Compliance Voltage (V); 60:Current (A).

    In addition to our standard designs, Apollo Instruments offers many existing design modifications that allow for a high degree of product customization. Apollo Instruments also supplies a variety of optical options, such as low aberration focusing and/or collimation assemblies, mirror, filters, spatial filters, and other accessories. Please inquire for further information if these options or other features can better help us meet your needs. Driver option include Short pulse width, analog modulation input, digital modulation input, foot pedal switch, and TEC driver.


    Lenses and Optical Accessories

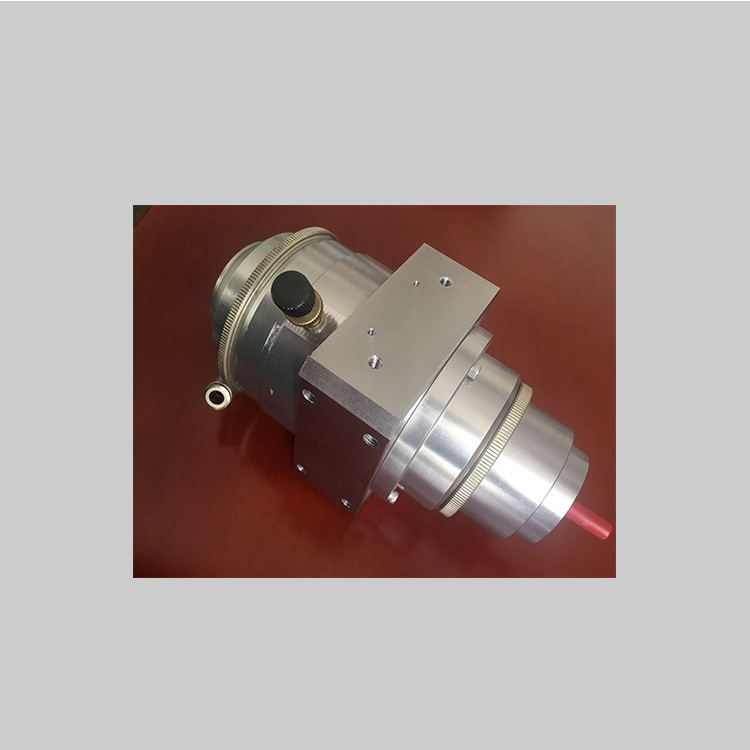

    Optical head for laser process

    Custom Lenses Head



    Processing Head

    Features

  • Fiber Connector: SMA, QBH
  • Max NA 0.22
  • Wavelength 800-1000nm
  • Transmission large than 95%

    • Specifications(Typical Products)


    Optical Parameters Spec Units
    Focal Length 8 to 300 mm
    Maximum Input Power up to 500, W
    Wavelength 800-1000 nm
    Cooling Water temperature 20-35 Celsius
    Flow rate for cooling 1.5-2 L/min

    We also offer other models not listed above. For more information, please contact us with a model number of your choice.


    lenses for laser material process

    Custom Lenses Head



    Custom Lenses

    Features

  • Fiber Connector: SMA, QBH
  • Max NA 0.22
  • Wavelength 800-1000nm
  • Transmission large than 95%

    • Specifications(Typical Products)


    Optical Parameters Spec Units
    Focal Length 8 to 300 mm
    Maximum Input Power up to 1500, W
    Wavelength 800-1000 nm
    Cooling Water temperature 20-35 Celsius
    Flow rate for cooling 1.5-2 L/min

    We also offer other models not listed above. For more information, please contact us with a model number of your choice.

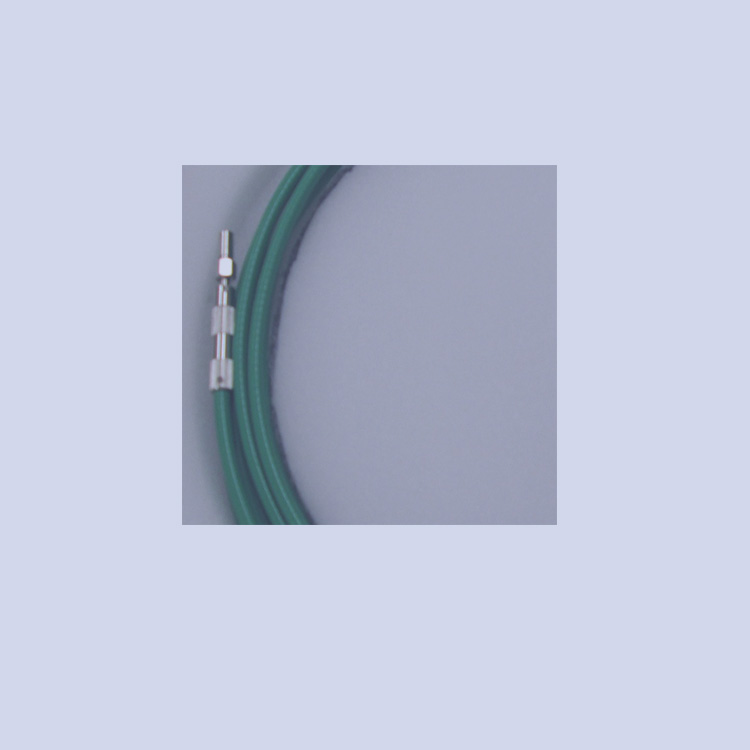

    fiber cable for high power laser diode delivery

    High Power Laser fiber cable

    Optical Accessories

    Features

  • Multimode Fiber Cable for Laser Diode Power Output
  • Termination Connector:SMA to SMA and D80-D80
  • Core diameter 0.1mm, 0.2mm, 0.4mm, 0.6mm
  • Length 2 meter or custom size
  • Wavelength range: 600-1000nm

    • Typical Products and Specifications(Typical Products)


    Fiber Core NA Connector
    0.05mm 0.22 SMA to SMA
    0.1mm 0.22 SMA to SMA
    0.2mm 0.22 SMA to SMA
    0.4mm 0.22 SMA to SMA
    0.6mm 0.22 SMA to SMA

    We also offer other models not listed above. For more information, please contact us with a model number of your choice.
