Laser Diode Systems Material Processing

3500W Laser Diode Head for Metal Cladding

3000W Direct Diode Lasers Head

3500W-10,000W Direct Diode Lasers

Features

Output power 3500W, 10,000W

Various focused spot size: 1.5X16, 1X4, 1X2, 4X4, 2X50mm etc.

Cost effective

Light weight, long working distance

Ready for integration

Surface cladding and material surface process

Typical Products and Specifications(Typical Products)

Product Name	Output Power	Spot
S3500	3500W	1.5X16, 1X4, 1X2, 4X4, 2X50mm etc.
S5000	5000W	1.5X16, 1X4, 1X2, 4X4, 2X50mm etc.
S10000	10,000W	1.5X16, 1X4, 1X2, 4X4, 2X50mm etc.

We also offer other models not listed above. For more information, please contact us with a model number of your choice.

Laser Diode OEM Application

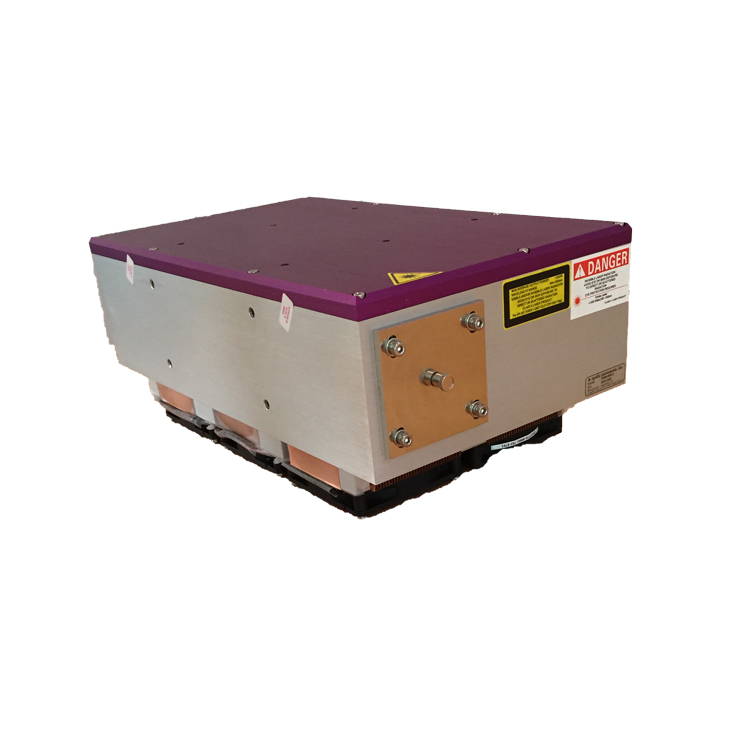

500W Diode Lasers OEM Module

500W Direct Diode Lasers

Features

Output Power 200W-500W

Ready for fiber connection

Cost effective

Air Cool Module

Fiber output, SMA connection

Typical Products and Specifications(Typical Products)

Product Name	Output Power	Fiber Core Diameter
F200	200W	600µm
F400	400W	600µm
F500	500W	800µm

We also offer other models not listed above. For more information, please contact us with a model number of your choice.

Model Number Breakdown (FY-XXX-Z) F:Model Type: F = Fiber coupled laser diode module Y:Output Power (W): Up to 10kW XXX:Wavelength (nm) *Standard: 808, 915, 940, or 980 nm *Non-standard available. Please inquire. Z:Fiber Core Diameter (in hundreds of microns): 0.05-1.0mm

Direct Laser Diode Material Processing

Cladding

Surface Treatment

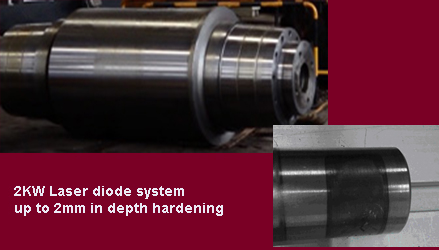

Hardening

3KW DDL at Work
