Fiber Coupled Laser Diode Turnkey Systems
100W-10kW FC-series FCLD Systems
100W-10kW FC-Series FCLD Systems
Features
Typical Specifications
| Input Power | 110/220 VAC 50-60 Hz |
|---|---|
| Noise | 1% rms |
| Transfer Function | 10A/V; max Slew Rate 3A/µs |
| External analog input | 0-5 V |
| Output port | SMA 905, armored fiber |
| Pulse width | Standard: 30ms-CW, optional: 100µs-CW |
| Pulse frequency | Up to 1 kHz |
| Ambient temperature | 0-30°C |
| Cooling | Internal fans cooling up to 35W, water cool up than 35W |
| Humidity | 5-95%, non-condensing |
| Lifetime | Up to 10,000 hrs |
Fiber Output Diode Laser System

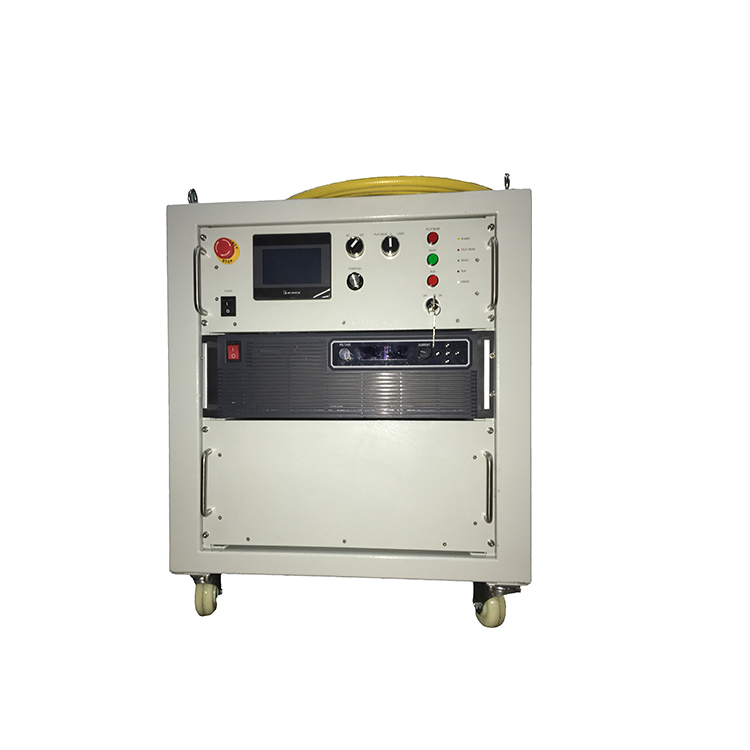

1700W, 3500W 5000W Fiber Output Diode Lasers
Features
Typical Products and Specifications(Typical Products)
| Product Name | Outpower | Fiber Core Diameter |
|---|---|---|
| S1700 | 1700W | 600µm |
| S3500 | 3500W | 600µm |
| S5000 | 5000W | 600µm |
We also offer other models not listed above. For more information, please contact us with a model number of your choice.
Model Number Breakdown (FY-XXX-Z) F:Model Type: F = Fiber coupled laser diode module Y:Output Power (W): Up to 10kW XXX:Wavelength (nm) *Standard: 808, 915, 940, or 980 nm *Non-standard available. Please inquire. Z:Fiber Core Diameter (in hundreds of microns): 0.05-1.0mm
3K-5K Direct Laser Diode Systems
3000W-5000W Direct Laser Diode Systems
Typical Products and Specifications(Typical Products)
| Product Name | Outpower | Spot |
|---|---|---|
| S3500 | 3500W | 1.5X16, 1X4, 1X2, 4X4, 2X50mm etc. |
| S5000 | 5000W | 1.5X16, 1X4, 1X2, 4X4, 2X50mm etc. |
| S10000 | 10,000W | 1.5X16, 1X4, 1X2, 4X4, 2X50mm etc. |
We also offer other models not listed above. For more information, please contact us with a model number of your choice.
Turnkey FCLD System
10W-250W Turnkey Fiber Coupled Laser Diode Systems
Apollo Instrument's turnkey systems offer high-quality beams integrated with the ease and reliability of our laser diode driver. The systems can be controlled locally from the device's front panel or remotely through the standard RS-232 interface and remote control function. Pulsed applications can be triggered externally or with the system's internal function generator (both capable of achieving minimum pulse widths of 100µs). Optional customizations range from specialized pulse specifications to multi-fiber outputs. All devices have a single wavelength ranging from 780-1550nm.
Typical Products and Specifications(Typical Products)
| Product Name | Outpower | Fiber Core Diameter |
|---|---|---|
| S10-XXX-0.5 | 10W | 50 µm |
| S20-XXX-1 | 20W | 100 µm |
| S150-XXX-2 | 150W | 200 µm |
| S200-XXX-4 | 200W | 400 µm |
| S250-XXX-6 | 250W | 600 µm |
We also offer other models not listed above. For more information, please contact us with a model number of your choice.
Model Number Breakdown (SY-XXX-Z) S:Model Type: S = Turnkey System Y:Output Power (W): Up to 10kW XXX:Wavelength (nm) *Standard: 808, 915, 940, or 980 nm *Non-standard available. Please inquire. Z:Fiber Core Diameter (in hundreds of microns): 0.05-1.0mm
System Options
System Options
In addition to our standard designs, Apollo Instruments offers many existing design modifications that allow for a high degree of product customization. Apollo Instruments also supplies a variety of optical options, such as low aberration focusing and/or collimation assemblies, mirrors, filters, spatial filters, and other accessories. Please inquire for further information if these options or other features can better help us meet your needs.
Options
| Short Pulse Width | This is an internal short pulse option. Standard pulse width is limited to 30ms. This option allows for a pulse width as narrow as 100µs. An input signal is not necessary to utilize this function. It is fully internal and can be set by using the functions on the LCD screen. |
|---|---|
| Analog Modulation Input | An external analog input can be used to control the output of the laser system. The magnitude of the analog signal controls the current, and the frequency of the analog signal controls the pulse frequency. The laser system is capable of following an input signal with a minimum pulse of 100µs and a maximum pulse frequency of 1kHz. The external analog signal input is the modulation input BNC connector on the back panel. |
| Digital Modulation Input | An external digital input can be used to control the output of the laser system. The laser system's output is capable of following an input signal with a minimum pulse width of 100µs and a maximum pulse frequency of 1kHz. The external digital signal is delivered to the digital modulation input BNC connector on the back panel. |
| Pilot Beam | A low power visible diode laser can be integrated into the laser modules for tracking the laser output. Power to the pilot beam is integrated in Apollo's laser diode driver. If a different laser is used, a 2.5V-3.5V DC power source should be supplied. |
| Photodiode Sensor | A photodiode sensor placed in the systems provides the user with a precise gauge of the laser status. |
| TEC Cooling | Some products can be equipped with a thermal electric cooler (TEC) unit, which allows for precision cooling. |
| Foot Pedal Switch | The foot pedal switch adds another convenient way to control the operation of the laser diode system. The foot pedal ensures that there is no laser output until it is pressed. |
| Multiple Channel Laser Diode System | If a multiple output system is ordered, the laser diode system can be designed to accept commands from an external device to open/close multiple laser output channels individually. Other arrangements can be made to facilitate a multiple fiber output laser diode system. |
